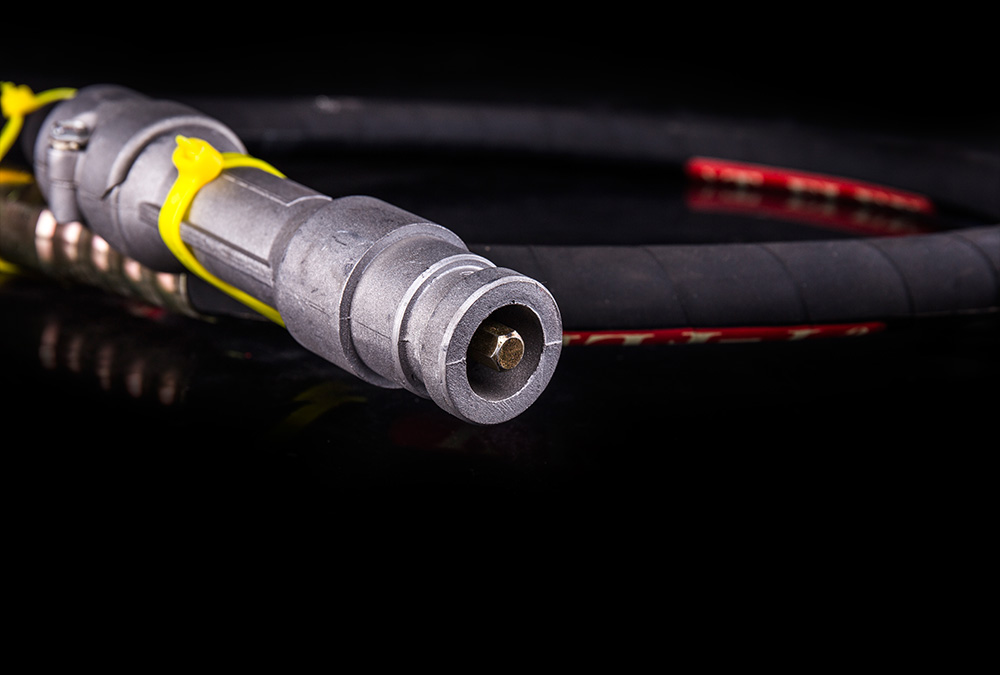

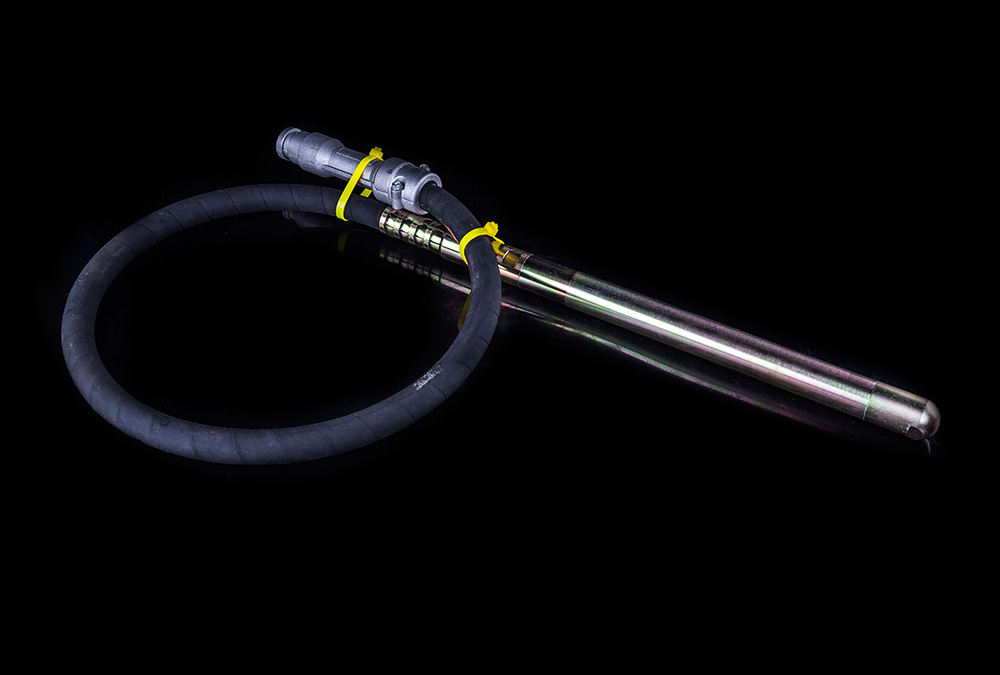

韓式振動棒
振動棒是工程建設中使用的一種機具，能夠使混凝土密實結合，消除混凝土的蜂窩麻面等現象，提高強度。
韓式振動棒適用于韓國
產品簡介
產品參數
JYG CJ系列簡易振動棒 Pendulum Concrete Vibrator |
JYG C系列彈簧振動棒Pendulum Counter Spring System Vibrator |
||||||||||||||
| 序號No | 編號Code No. | 直徑Head Dia.(mm) | 長度Head Lenght (mm) | 轉速R.P.M | 頻率Freq.(VPM) | 振幅Vibration Amplitude (mm) | 軟管外徑Casing Outer Dia. (mm) | 軟軸直徑Flex-shaft Dia. (mm) | 馬氏簡易棒型號DYNAPAC TYPE |
日式簡易棒型號JAPANESE TYPE |
韓式簡易棒型號KOREAN TYPE | 土耳其式簡易棒型號TURKISH TYPE | 印度式簡易棒型號INDIAN TYPE |
馬氏彈簧棒型號DYNAPAC TYPE |
日式彈簧棒型號JAPANESE TYPE |
| 1 | CJ28 | 28 | 450 |
2850
|
10000~ 12000 |
1.2 | 25 | 8 | CJ28D | CJ28J | CJ28K | CJ28T | CJ28IN | C28D | C28J |
| 2 | CJ32 | 32 | 470 | 1.4 | 30 | 10 | CJ32D | CJ32J | CJ32K | CJ32T | CJ32IN | C32D | C32J | ||
| 3 | CJ38 | 38 | 470 | 1.6 | 30 | 10 | CJ38D | CJ38J | CJ38K | CJ38T | CJ38IN | C38D | C38J | ||
| 4 | CJ45 | 45 | 470 | 2.0 | 30 | 10 | CJ45D | CJ45J | CJ45K | CJ45T | CJ45IN | C45D | C45J | ||
| 5 | CJ60 | 60 | 486 | 2.4 | 32 | 13 | CJ60D | CJ60J | CJ60K | CJ60T | CJ60IN | C60D | C60J | ||
| 6 | CJ70 | 70 | 495 | 2.6 | 36 | 13 | CJ70D | CJ70J | CJ70K | CJ70T | CJ70IN | ||||
